Features
- The GeneSoC® mini R uses proprietary microfluidic thermal cycling technology to enable rapid, real-time amplification of target genes.
- The GeneSoC® mini R is equipped with a heater dedicated to reverse transcription, enabling rapid reverse transcription and PCR to be performed in a single step.
- The GeneSoC® mini R is equipped with a three-wavelength fluorescence detector, enabling detection of three different target genes at the same time.

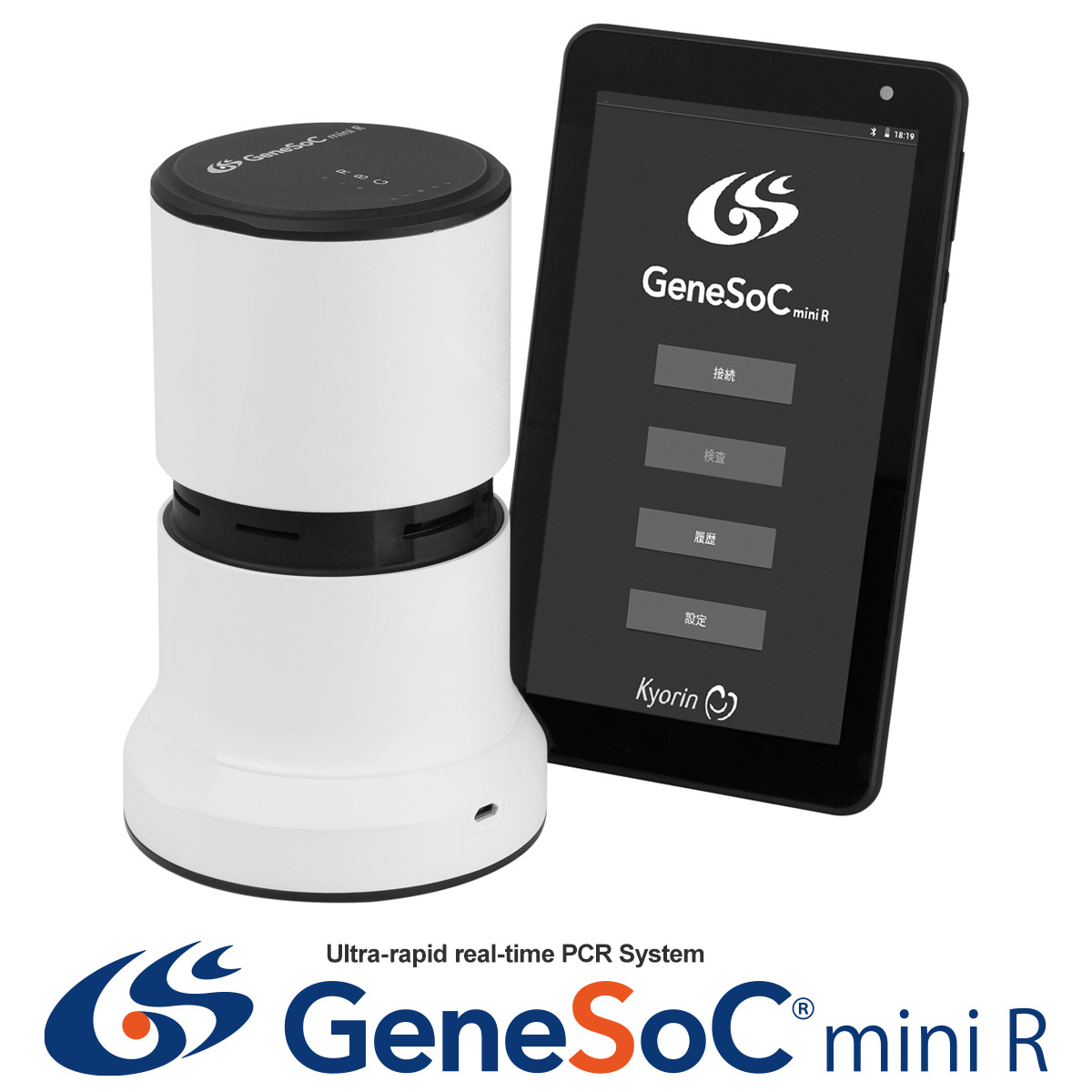

- The GeneSoC® mini R can be easily operated via the touch panel of the included tablet. Its palm-sized main unit weighs approximately 650 g, allowing flexible installation without space constraints.

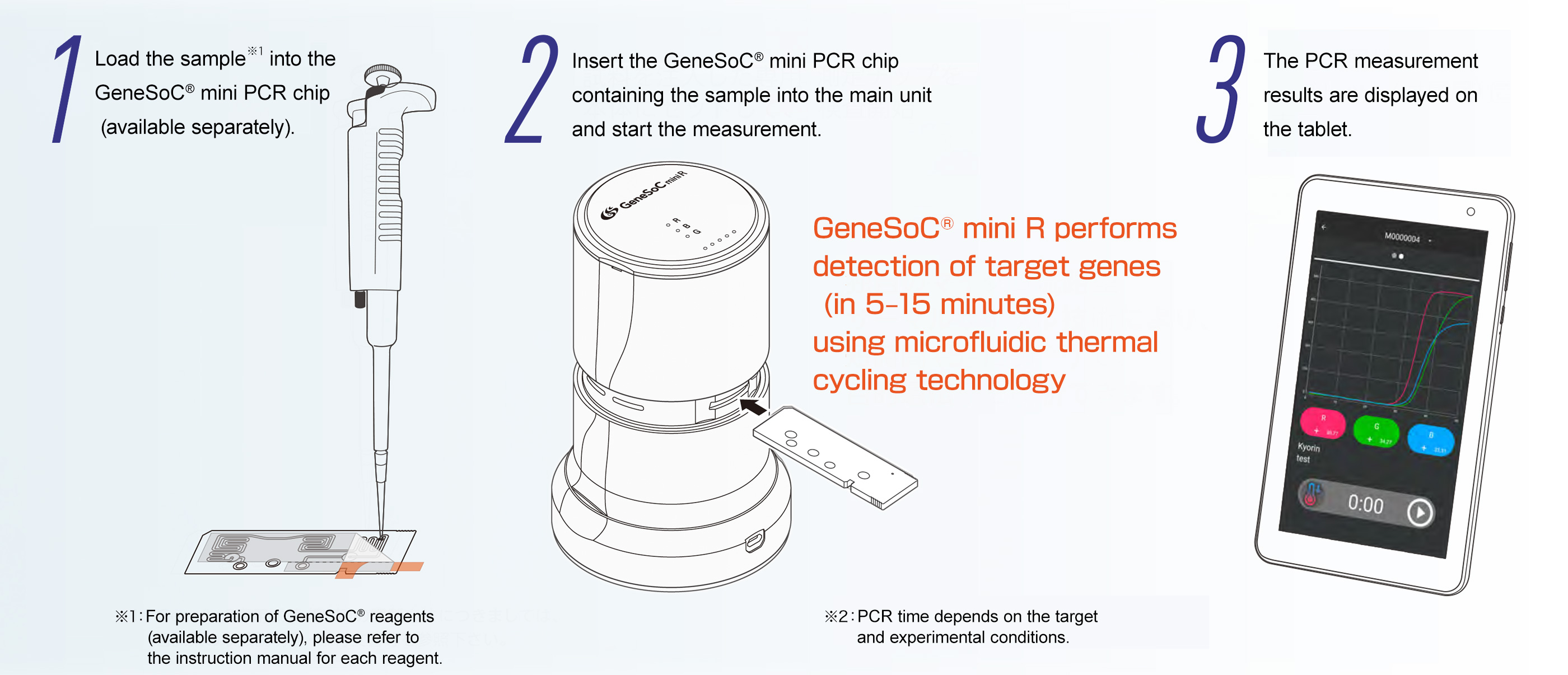

How to Use
Specification
| Product Name | Ultla-rapid real-time PCR system GeneSoC® mini R |
|---|---|
| Classification | Research-use instrument |
| Model No. | GSC-MINI-R01 |
| JAN Code | 4987060009746 |
| Number of samples | 1 |
| Reaction vessel | GeneSoC® mini PCR chip (available separately) |
| Reaction volume | 18～20µL |
| Detection format | hydrolysis probe method |
| Excitation / Detection Wavelengths (Recommended Fluorescent Dyes) | 470nm / 515nm (FAM) 530nm / 630nm (HEX) 598nm / 630nm≥ (Cy5) |
| Number of detection targets | Up to 3 |
| interface | The main unit connects to the tablet via Bluetooth. |

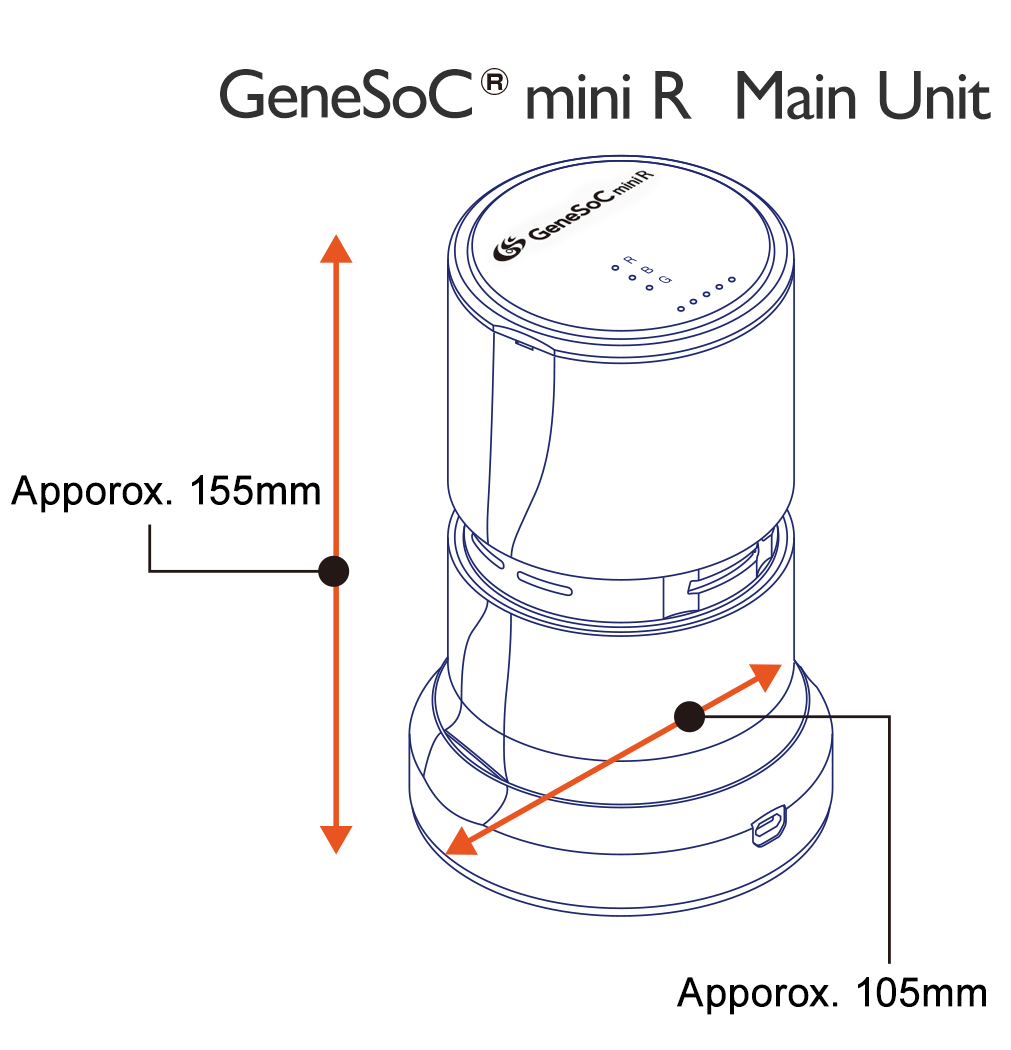

| Dimention/Weight | Dimensions: Approx. Ø105 mm × 155 mm (H) Weight: Approx. 650 g (excluding AC adapter) |
| Power Supply | Quantity required: 1 Voltage: AC 100–240 V Frequency: 50–60 Hz Rated power consumption: 16 W |
| Operating Environment | Temperature: Ambient temperature of the device : 15°C to 30°C Humidity: No condensation (relative humidity ≤80% at 30°C or below) Pollution degree: 2 Installation environment: General indoor Environment Ensure sufficient space between the device and walls to allow for heat dissipation. |
| Country of manufacture | Japan |
